What's Really Inside Your Treadmill? A Technician's Tour of the Parts That Keep You Moving

A treadmill runs on nine coordinated systems working together every time you press Start: the walking belt, deck, front and rear rollers, drive motor, motor controller, console, incline mechanism, safety sensors, and lubrication system. At Heartbeat Fitness Repair, our technicians have completed more than 22,000 hours of on-site equipment service, giving us a close-up view of what keeps treadmills running smoothly and what causes them to fail.

— By Toren, Owner & Managing Member — Back to all articles

Share: Facebook · LinkedIn · X

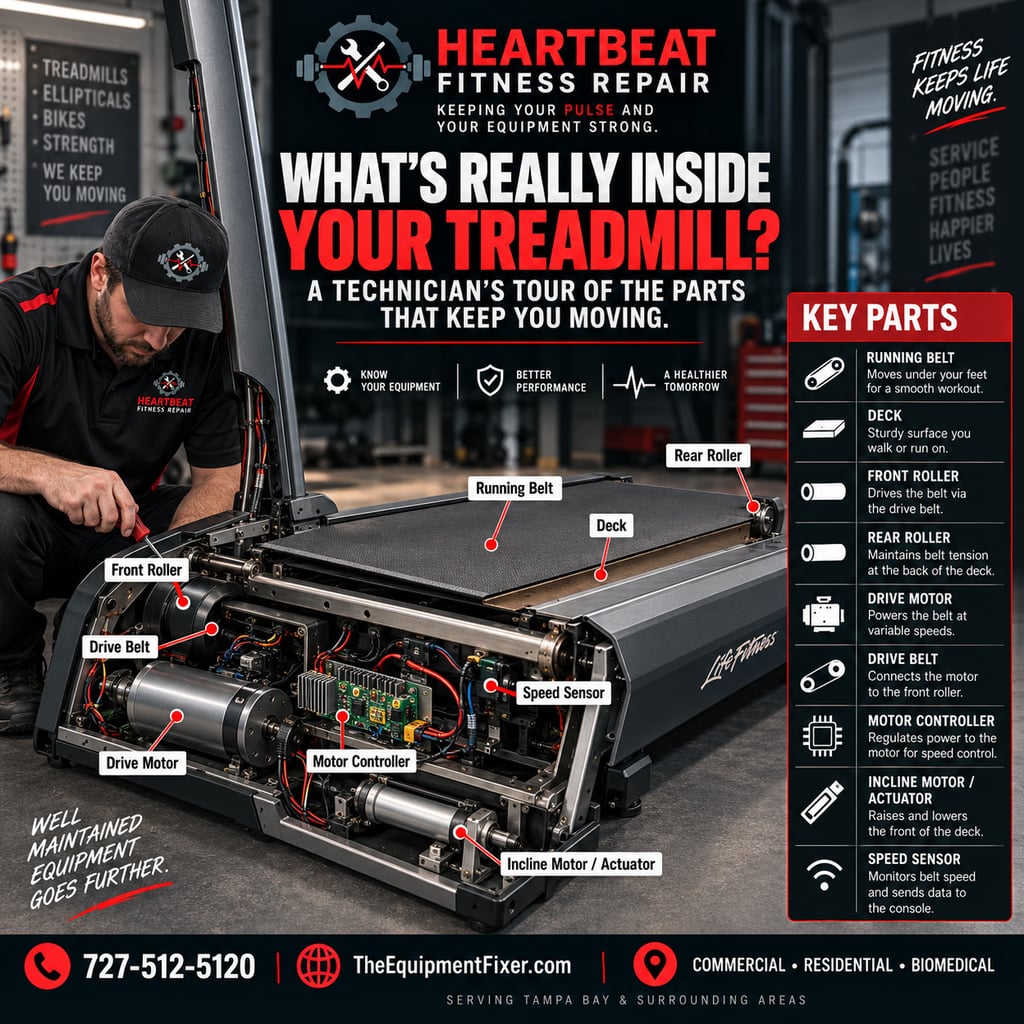

Heartbeat Fitness Repair infographic: What's Really Inside Your Treadmill — key parts including the running belt, deck, front and rear rollers, drive motor, motor controller, incline motor and actuator, and speed sensor

A treadmill may look simple from the outside: a moving belt, a set of handlebars, and a console that displays your workout. Inside, however, several mechanical, electrical, and safety systems work together every time you press Start.

Understanding those systems can help you recognize early warning signs, perform basic care correctly, and know when it's time to call a professional. Whether you own a home treadmill, manage a private training studio, or oversee a busy commercial fitness facility, here's a technician's tour of the key components inside your machine.

1. The Walking Belt: Your Treadmill's Contact Point

The walking belt is the part you see and use most. It forms a continuous loop around the front and rear rollers, moving across the deck beneath your feet. A properly maintained belt should move smoothly without excessive noise, hesitation, slipping, or drifting toward one side. Over time, the belt can stretch, become glazed or slick, fray along the edges, or develop worn areas where users take most of their steps.

Common belt problems include:

A belt that's too loose may slip. A belt that's too tight can increase stress on the motor, rollers, deck, and controller. Tracking adjustments should be made carefully and according to the manufacturer's specifications — turning adjustment bolts too far or unevenly can create additional problems. See our guide on diagnosing a slipping treadmill belt for a closer look.

2. The Deck: The Surface Beneath the Belt

The deck is the stationary platform underneath the walking belt. It supports each step and helps distribute impact across the treadmill frame. Most treadmill decks are designed with a low-friction surface that works with the belt and an appropriate lubricant. As the deck wears, friction can increase — and that added resistance forces the drive motor to work harder, which may lead to overheating, reduced performance, or premature failure of electrical components.

Technicians inspect the deck for grooves or worn areas, cracks or warping, uneven surfaces, signs of excessive friction, and damage caused by a worn or poorly adjusted belt. A deck doesn't always fail dramatically — it may gradually become rougher and less efficient, which is why regular inspection matters most for treadmills used frequently in commercial environments.

3. The Rollers: Keeping the Belt Moving

Most treadmills use two primary rollers: the front roller, typically connected to the drive system, and the rear roller, which helps support the belt and maintain tension. Roller bearings allow these components to spin smoothly. When bearings wear out, they may produce grinding, rumbling, squealing, or clicking sounds. A damaged roller can also contribute to belt tracking issues or an inconsistent walking surface.

Because rollers operate every time the treadmill is used, they experience continuous wear. Dust, moisture, poor belt alignment, excessive tension, and heavy usage can all shorten their service life. A technician inspects the rollers by checking their condition, listening for abnormal sounds, evaluating side-to-side movement, and confirming that the belt runs evenly across them.

4. The Drive Motor: The Power Behind the Belt

The drive motor converts electrical energy into mechanical movement. It turns the front roller through a smaller motor belt or transmission system, which then moves the walking belt. When the treadmill is operating correctly, the motor should respond smoothly as speed changes — it shouldn't produce a burning smell, excessive heat, or dramatic changes in sound under normal use.

Common drive motor warning signs include:

Dust buildup is a frequent contributor to motor problems — hair, lint, and debris can collect around the motor and cooling areas, limiting airflow. Insufficient belt lubrication and excessive belt tension can also make the motor work harder than it should. Cleaning around the motor compartment can be part of routine care, but always unplug the treadmill first. Do not touch wiring, circuit boards, or electrical connections unless you're qualified to do so.

5. The Motor Controller: The Traffic Manager

The motor controller, sometimes called the lower control board, regulates the power sent to the drive motor. When you press the speed controls on the console, the controller interprets that command and adjusts motor output. It also works with feedback from sensors to help the treadmill maintain a consistent speed. If the controller begins to fail, the symptoms may look mechanical even when the underlying problem is electrical.

Possible controller problems include failure to start, sudden changes in speed, intermittent shutdowns, a belt that surges or hesitates, error codes, and breaker trips during operation. Diagnosing a controller requires more than visually inspecting the board — a trained technician tests incoming power, wiring, motor performance, sensor feedback, and the board's output. Replacing a controller without confirming the root cause can lead to unnecessary expense.

6. The Console: Your Interface With the Machine

The console is the user-facing control center. It displays information such as speed, time, distance, incline, calories, and workout programs, and it also sends commands to the lower electronics. Console issues may involve unresponsive buttons, flickering or blank displays, incorrect workout data, communication errors, failure to recognize the safety key, or problems with built-in entertainment or network features.

Not every console problem means the console itself must be replaced. Loose wiring, a failed power supply, a damaged communication cable, or a problem farther down in the system can produce similar symptoms. In a commercial facility, console accuracy matters — a screen that lights up isn't necessarily operating correctly, so preventive maintenance should verify that the treadmill's reported speed and incline correspond with its actual performance.

7. The Incline Mechanism: Raising the Front of the Deck

Incline treadmills use a motor, actuator, screw mechanism, or linkage system to raise and lower the front of the deck, allowing the user to simulate uphill walking or running. Incline problems may appear as the deck failing to raise or lower, the treadmill becoming stuck at one angle, uneven incline movement, clicking or grinding noises from the motor, or an incline error on the console.

The incline system carries substantial mechanical load — lubrication, alignment, wiring, and calibration all matter. A treadmill that reaches its maximum incline but doesn't return smoothly may need professional inspection rather than repeated button presses. See our guide on treadmill incline problems for common causes and fixes.

8. Safety Sensors and Emergency Controls

Treadmills include several safety-related components. The safety key or emergency stop device is designed to stop the belt if the user moves too far back or falls. Many machines also include speed sensors that monitor how quickly the belt is moving, along with sensors that may track motor speed, incline position, heart rate through handle contacts, console communication, and belt movement.

If a treadmill starts and then stops, displays an error, or fails to recognize its safety key, a sensor or connection may be involved. Never bypass a safety feature to keep the machine running — a treadmill with a faulty emergency stop system should be removed from service until it's inspected.

9. The Lubrication System: Reducing Friction

Many treadmills require periodic lubrication between the belt and deck. The correct schedule depends on the model, usage, environment, and manufacturer instructions, and some commercial treadmills use different lubrication systems or materials than residential models. Too little lubrication can increase friction and motor load. Too much — or the wrong product — can contaminate components, affect belt tracking, or create a slippery surface.

A proper maintenance visit may include checking the condition of the belt and deck, confirming whether lubrication is appropriate, applying the correct product when needed, and verifying that the belt remains aligned afterward.

Maintenance Protects Every Component

The major treadmill systems are connected. A worn belt can damage a deck. A rough deck can overload a motor. A strained motor can affect the controller. Poor belt alignment can accelerate roller wear. That's why preventive maintenance is more than cleaning the outside of the machine — it may include belt inspection and calibration, deck evaluation, roller and bearing checks, motor compartment cleaning, electrical and controller diagnostics, incline testing, safety key and sensor verification, lubrication according to manufacturer guidance, and documentation of developing problems.

For commercial facilities, scheduled service can also reduce downtime and create a record of equipment condition. For homeowners, it can help protect an expensive fitness investment and prevent a small issue from becoming a major repair.

When Should You Call a Professional?

Searches for "treadmill repair near me" often begin after a machine stops working completely. However, service is usually more effective when called for earlier — when you first notice slipping, unusual noise, inconsistent speed, incline problems, or a burning smell.

Heartbeat Fitness Repair provides professional residential fitness equipment repair, commercial fitness equipment service, treadmill diagnostics, preventive maintenance, and related services such as exercise bike repair. Our broader fitness equipment repair experience helps homeowners and facility managers make informed decisions about repair, maintenance, and replacement.

Keep Your Treadmill Ready for the Next Workout

A treadmill is a coordinated system, not just a belt and a motor. When its moving parts, electronics, sensors, and safety features receive the attention they need, the machine can operate more smoothly, safely, and reliably. If your treadmill is making unusual noises, slowing under load, drifting, failing to incline, or showing electrical problems, don't wait for a complete breakdown.

Frequently Asked Questions

What are the main parts inside a treadmill?
A treadmill is built from nine coordinated systems: the walking belt, the deck underneath it, the front and rear rollers, the drive motor, the motor controller (lower control board), the console, the incline mechanism, safety sensors and the emergency stop key, and a lubrication system between the belt and deck. Each part depends on the others, so a problem in one system often shows up as a symptom in another.
What causes a treadmill belt to slip, pause, or feel jerky?
Belt slipping, pausing under load, or a jerky feeling at low speeds usually comes from a belt that's too loose, a worn or glazed belt surface, uneven deck friction, or a drive belt problem at the motor. Tracking issues that pull the belt left or right are typically caused by an out-of-adjustment roller and should be corrected according to the manufacturer's specifications, not guesswork.
Why would a treadmill motor overheat or trip a breaker?
Dust and lint buildup around the motor and cooling areas is the most common cause, since it restricts airflow and makes the motor run hotter than it should. Insufficient belt lubrication and excessive belt tension also force the motor to work harder than intended. A motor that trips a breaker, produces a burning smell, or overheats during ordinary workouts should be inspected before it's used again.
What does the motor controller do on a treadmill?
The motor controller (also called the lower control board) regulates the power sent to the drive motor and interprets the speed commands from the console, while also using sensor feedback to keep the belt moving at a consistent speed. Symptoms of a failing controller — failure to start, sudden speed changes, intermittent shutdowns, or error codes — can look mechanical even though the underlying problem is electrical, which is why diagnosing it requires testing power, wiring, and sensor feedback rather than replacing the board on a guess.
When should I call a professional instead of troubleshooting my treadmill myself?
Call a technician as soon as you notice slipping, unusual noise, inconsistent speed, incline problems, or a burning smell — waiting until the machine stops working completely usually means a small issue has become an expensive one. Never bypass a safety key or emergency stop feature to keep a treadmill running; a machine with a faulty safety system should be taken out of service until it's inspected.

Frequently Asked Questions

What are the main parts inside a treadmill?
A treadmill is built from nine coordinated systems: the walking belt, the deck underneath it, the front and rear rollers, the drive motor, the motor controller (lower control board), the console, the incline mechanism, safety sensors and the emergency stop key, and a lubrication system between the belt and deck. Each part depends on the others, so a problem in one system often shows up as a symptom in another.
What causes a treadmill belt to slip, pause, or feel jerky?
Belt slipping, pausing under load, or a jerky feeling at low speeds usually comes from a belt that's too loose, a worn or glazed belt surface, uneven deck friction, or a drive belt problem at the motor. Tracking issues that pull the belt left or right are typically caused by an out-of-adjustment roller and should be corrected according to the manufacturer's specifications, not guesswork.
Why would a treadmill motor overheat or trip a breaker?
Dust and lint buildup around the motor and cooling areas is the most common cause, since it restricts airflow and makes the motor run hotter than it should. Insufficient belt lubrication and excessive belt tension also force the motor to work harder than intended. A motor that trips a breaker, produces a burning smell, or overheats during ordinary workouts should be inspected before it's used again.
What does the motor controller do on a treadmill?
The motor controller (also called the lower control board) regulates the power sent to the drive motor and interprets the speed commands from the console, while also using sensor feedback to keep the belt moving at a consistent speed. Symptoms of a failing controller — failure to start, sudden speed changes, intermittent shutdowns, or error codes — can look mechanical even though the underlying problem is electrical, which is why diagnosing it requires testing power, wiring, and sensor feedback rather than replacing the board on a guess.
When should I call a professional instead of troubleshooting my treadmill myself?
Call a technician as soon as you notice slipping, unusual noise, inconsistent speed, incline problems, or a burning smell — waiting until the machine stops working completely usually means a small issue has become an expensive one. Never bypass a safety key or emergency stop feature to keep a treadmill running; a machine with a faulty safety system should be taken out of service until it's inspected.
