Exercise Bike Resistance Not Working? Common Causes and Fixes

Exercise bike resistance failure has different causes depending on the resistance type. On friction bikes (spin bikes), the cause is usually a worn brake pad, a stretched tension cable, or a misaligned brake mechanism. On magnetic bikes (NordicTrack, Life Fitness, Precor, Peloton), the cause is usually a failed resistance motor, a worn eddy-current brake assembly, or a controller board fault.

August 5, 2026 — By Toren, Owner & Managing Member — Back to all articles

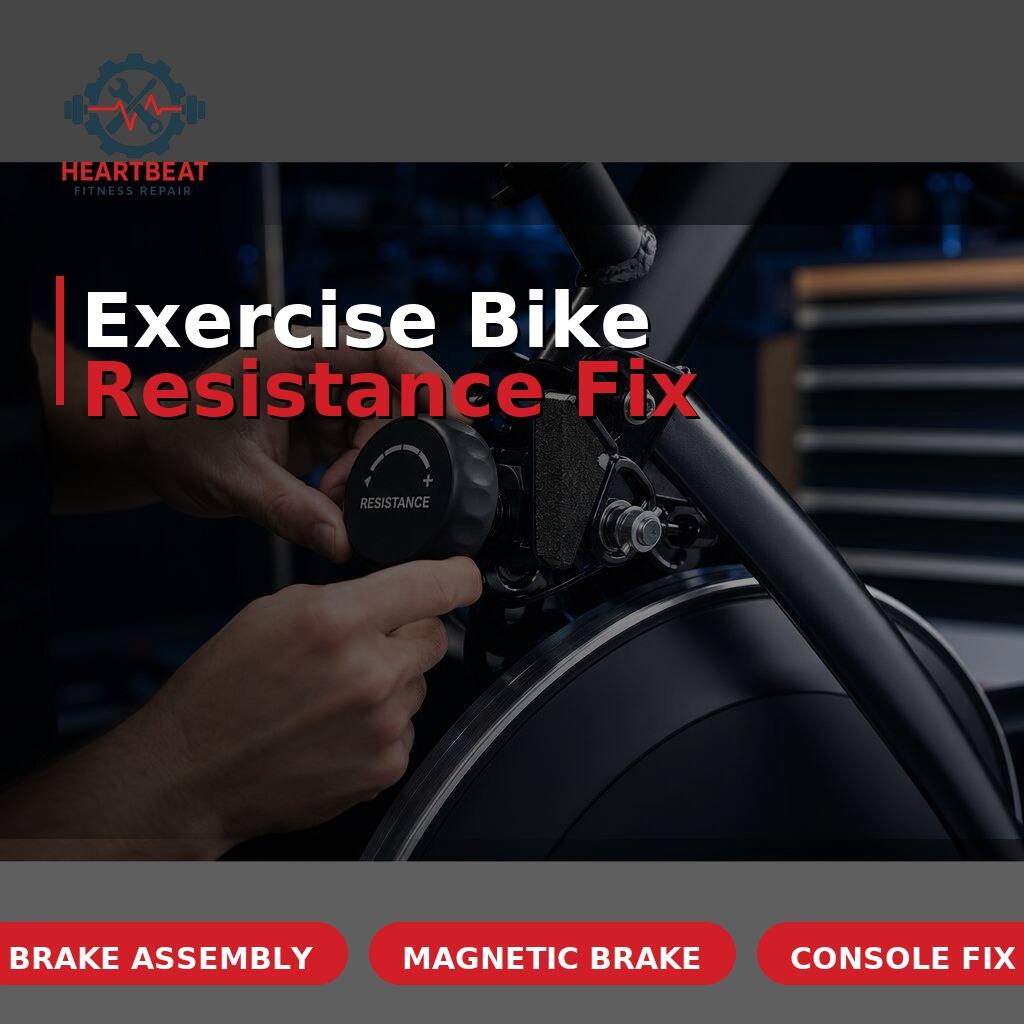

Exercise bike with resistance system being diagnosed for repair

Your exercise bike resistance isn't responding. You twist the knob or press the up arrow on the console, and nothing happens — or the resistance is stuck on one level and won't budge. Before you assume the worst, know this: resistance problems are among the most common and most fixable issues we see on exercise bikes across Tampa Bay. In most cases, the bike isn't done — it just needs a targeted fix.

Two Types of Resistance: Friction vs. Magnetic

Friction (mechanical) resistance uses a felt or synthetic brake pad that presses against a weighted flywheel. Spin bikes and many older upright bikes use this system. When resistance fails here, it's typically because the brake pad is worn down, glazed, or misaligned — or because the tension cable connecting the knob to the pad has stretched or snapped.

Magnetic resistance uses electromagnets to generate drag against the flywheel without physical contact. This is standard on most modern upright and recumbent bikes — NordicTrack, Life Fitness, Precor, Peloton, Schwinn IC, and similar brands. Failure here usually involves the magnetic brake assembly, the resistance motor, or the console's connection to the motor controller board.

Common Causes of Resistance Failure

1. Worn or Glazed Brake Pad (Friction Bikes)

On spin bikes with felt brake pads, the pad wears down over time and eventually loses the ability to grip the flywheel effectively. You'll notice resistance feels inconsistent, only kicks in at very high tension settings, or is completely absent. Replacing the brake pad is the correct fix — further adjustment won't restore grip on a worn surface.

2. Stretched or Broken Tension Cable (Friction Bikes)

The resistance knob on a friction bike connects to the brake pad via a tension cable. If this cable stretches significantly or breaks, turning the knob does nothing. A stretched cable can sometimes be re-tensioned; a broken cable requires replacement.

3. Failed Magnetic Brake Assembly (Magnetic Bikes)

On magnetic-resistance bikes, the brake assembly contains a permanent magnet or electromagnet that moves closer to or farther from the flywheel to change resistance. If the actuator motor fails — or if the magnet assembly cracks or corrodes — resistance levels will be stuck or completely non-functional.

4. Resistance Motor or Drive System Failure

Many console-controlled bikes use a small servo or stepper motor to adjust the magnetic brake position. If this motor fails, the console will appear to send resistance commands but the bike won't respond. Symptoms include error codes related to resistance motor communication.

5. Console or Controller Board Issue

If the motor and mechanical system check out fine, the problem may be in the console or the lower motor control board. Intermittent resistance often points to a loose wiring harness; fully unresponsive resistance can indicate a blown fuse or failed motor driver circuit.

DIY Checks You Can Safely Do First

Power cycle the console (unplug, wait 30 seconds, restart).
Check for error codes on the console display and note them.
Try cycling the resistance through its full range slowly.
Inspect visible wiring connections near the console bracket or resistance motor for loose connectors.

When to Call a Technician

Call us when the resistance knob shows activity but the mechanical system doesn't respond, when error codes persist after power cycling, or when disassembly is required to access the magnetic brake assembly. We service all major brands — exercise bike repair throughout Tampa, Clearwater, and all of Tampa Bay. Call 727-512-5120 for same-week scheduling.

How Much Does Exercise Bike Resistance Repair Cost?

Our diagnostic fee is $149.99–$169.99 (residential & commercial). Common part costs vary by brand, model, and availability — we provide a written quote after an on-site diagnosis before any work begins. See our pricing page for more detail.
